Impinj Speedway Revolution R420 UHF RFID Reader (4 Port)

Impinj Speedway Revolution R420 UHF RFID Reader (4 Port)

Impinj

Regular price $1,585.00 Sale

Quick Overview

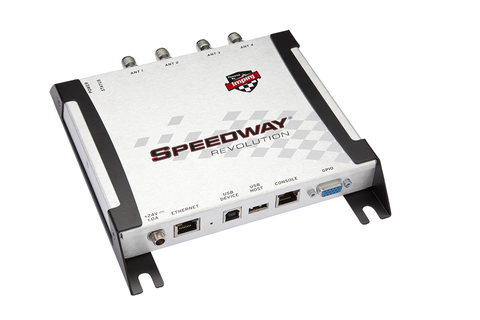

The Speedway Revolution R420 UHF RFID Reader delivers the performance, quality, and reliability necessary for maximum visibility of tagged inventory and assets. Able to maintain high read rates regardless of RF noise or interference as the readers adapt automatically for optimal functionality, Speedway readers are a powerful piece of item visibility platform solutions. Impinj's innovative Speedway® Revolution RFID reader with Autopilot automatically optimizes its operation to the environment—delivering peak performance at all times. The Speedway Revolution reader improves upon the legacy of the original, EPC-certified Speedway reader that was the first high-performance reader designed from the ground up (not merely upgraded) to support the EPCglobal UHF Gen 2 standard in its entirety. The Speedway R420 reader is supported by a suite of software, hardware, and antennas that deliver application and deployment flexibility, making installation and expansion easier than ever.

Specs

ELECTRICAL:

Air Interface Protocol:
GS1/EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency:
UHF (860 - 960 MHz), region dependent
Transmit Power (POE):
+10.0 to +31.5 dBm (EU1 limited to +30 dBm)
Transmit Power (External DC Power):
+10.0 to +32.5 dBm (Listed/Certified power supply) (EU1 limited to +31.5 dBm, JP2 limited to 30 dBm)
Max Receive Sensitivity:
-84 dBm
Max Read Distance:
Not published
Max Read Rate:
Up to 1,100 tag reads per second
Data Interface:
RS-232, ethernet
GPIO:
4 GPI optically isolated 3-30V/ 4 GPO optically isolated, 0-30V, non-isolated 5V, 100mA supply (DB-15)
Power Source (POE):
IEEE 802.3af
Power Source (External DC Power):
Listed/Certified power supply, AC-DC power supply rated for 24Vdc/2.1A
MECHANICAL:

Antenna Ports:
4 RP-TNC female ports (connects to RP-TNC male), expandable to 32 antennas with Impinj Speedway Antenna Hub
Dimensions:
190.5 x 175.3 x 30.5 mm (7.5 x 6.9 x 1.2 in)
Weight:
0.7 kg (1.5 lbs)
ENVIRONMENT:

IP Rating:
IP 52
Operating Temperature:
-20 ºC to +50 ºC (-4 ºF to +122 ºF)
