SLIX2 PCB Tag - 4.5mm Square 1.8mm Thick - NFC Type 2 - ISO/IEC 15693 Compliant

Write and read NDEF data for RFID attendance, security, marketing, and more

Read with the built-in NFC reader on your Galaxy phone or iPhone (since S6 and iPhone 7)

Fully complies with NFC Forum Type 2 Tag and ISO/IEC15693 specifications

Configurable password protection with an optional limit of unsuccessful attempts

Quality you can rely on—true anti-collision, data retention of 10 years, and write endurance of 100,000 cycles

Use this tag with apps like SerialMagic, iScanBrowser, Stratus-io Attendance, and Cloud-In-Hand® Mobile Grid, that supports the built-in RFID-NFC reader in iPhone 7, 8, X, 11, 12, 13, 14, 15, ... and Android devices

Physical

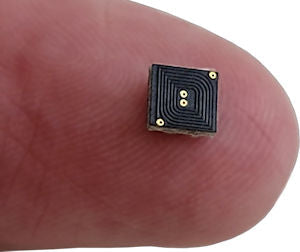

• 4.5 x 4.5 x 1.8 mm (Typical thickness is 1.7mm)
• PCB durability and form factor ideal for pick-and-place usage

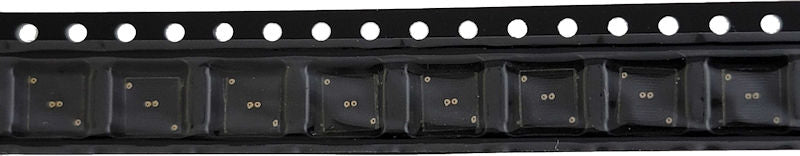

• Available in 13" reel packing for 2000 to 4000 pcs

I•CODE SLIX RF Interface (ISO/IEC 15693)

• Contactless transmission of data and supply energy (no battery needed) Operating distance: up to 1.5 m (depending on antenna geometry)
• Operating frequency: 13.56 MHz (ISM, world-wide license free available)
• Fast data transfer: up to 53 kbit/s
• High data integrity: 16 Bit CRC, framing
• True anti-collision
• Electronic Article Surveillance (EAS)
• Application Family Identifier (AFI) supported
• Data Storage Format Identifier (DSFID)
• Additional fast anti-collision read
• Write distance equal to read distance

EEPROM

• SLIX-2 has 2528 bits, 316 bytes, organized in 32 blocks of 4 bytes per block (300 bytes NDEF format)
• SLIX2 block 79 contains 16 bit counter, RFU, counter password enabled flag
• Data retention of 10 years
• Write endurance 100.000 cycles
• Ask us about other chip types: SLI: 1024 bits 128 bytes, Mifare/Desfire: 8K 1024 bytes, UHF tags, and others.

Security

• Unique identifier for each device
• Lock mechanism for each user memory block (write protection). Contact before purchase to insure writer will support this.
• Lock mechanism for DSFID, AFI, EAS
