NFC Sticker Tag 8mm Diameter Works On-Metal

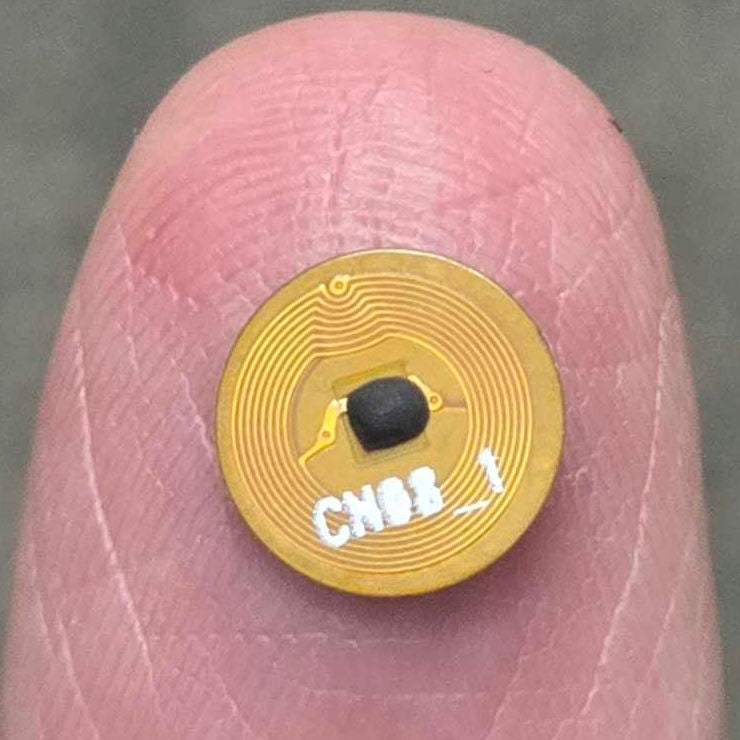

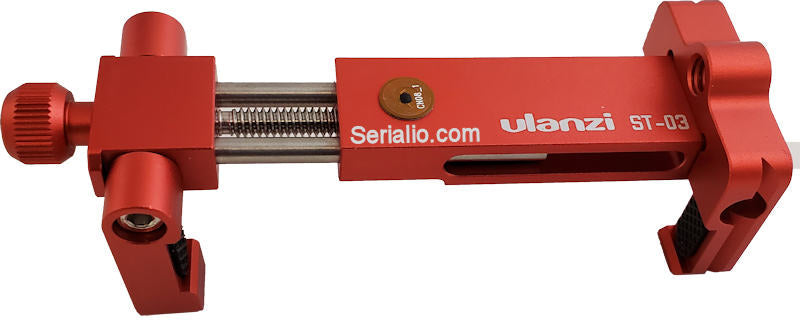

Tiny round RFID-NFC sticker tag 8mm diameter works on metal (anti-metal).
Has 7-byte serial number, 180 bytes of user memory supporting URLs up to 144 characters long, with 32-bit password option.
Fully complies with NFC Forum Type 2 Tag and ISO/IEC14443 Type A specifications using High Frequency (HF) 13.56MHz.

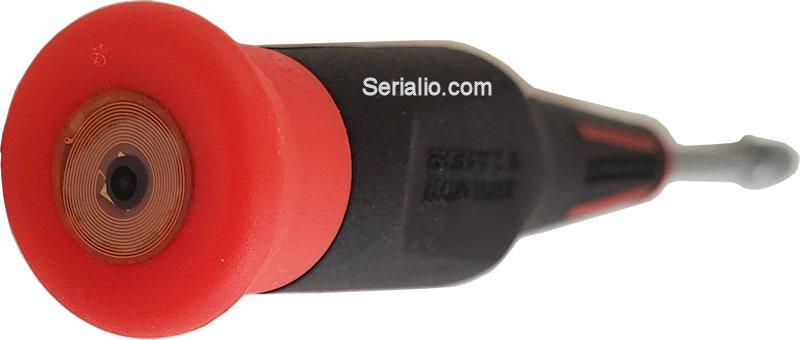

Stick on any location for instant RFID based attendance. Tiny size allows use on assets large & small - supporting inspections, fast inventory counts.
Use this tag with apps like SerialMagic, iScanBrowser, Stratus-io Attendance, and Cloud-In-Hand® Mobile Grid, that supports the built-in RFID-NFC reader in iPhone 7, 8, X, 11, 12, 13, 14, 15 and Android devices
The idChamp® RS4 BLE RFID Reader / Writer can read and write raw user data, NDEF data with this tag using iPads and iPhones, as well as old units that do not have a built-in NFC-RFID reader.
Contact us for variants of this tag, we can provide hundreds of models.
- 8mm diameter x 0.4 mm (Maximum thickness at the point of chip within the inlay. non-chip area thickness is about 0.1mm)
- peel-and-stick adhesive back
- Contactless transmission of data and supply energy (no battery needed)
- Operating frequency of 13.56 MHz
- Data transfer of 106 kbit/s
- Data integrity of 16-bit CRC, parity, bit coding, bit counting
- 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
- UID ASCII mirror for automatic serialization of NDEF messages
- Automatic NFC counter triggered at read command
- NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
- ECC based originality signature
- Fast read command
- True anti-collision
- 50 pF input capacitance
-
NTAG213: 180 bytes organized in 45 pages with 4 bytes per page, 144 bytes freely available user Read/Write area (45 pages)
Ask us about NTAG215, NTAG216 If you want more memory 540, 924 bytes organized in 135, 222 pages - 504, 888 bytes freely available user Read/Write area (126, 222 pages)
4 bytes initialized capability container with one-time programmable access bits - Field programmable read-only locking function per page for the first 16 pages
- Field programmable read-only locking function above the first 16 pages per double page for NTAG213 or per 16 pages for NTAG215 and NTAG216
- Configurable password protection with optional limit of unsuccessful attempts
- Anti-tearing support for capability container (CC) and lock bits
- ECC supported originality check
- Data retention time of 10 years
- Write endurance 100,000 cycles
- Manufacturer programmed 7-byte UID for each device
- Pre-programmed Capability container with one-time programmable bits
- Field programmable read-only locking function
- ECC based originality signature
- 32-bit password protection to prevent unauthorized memory operations
