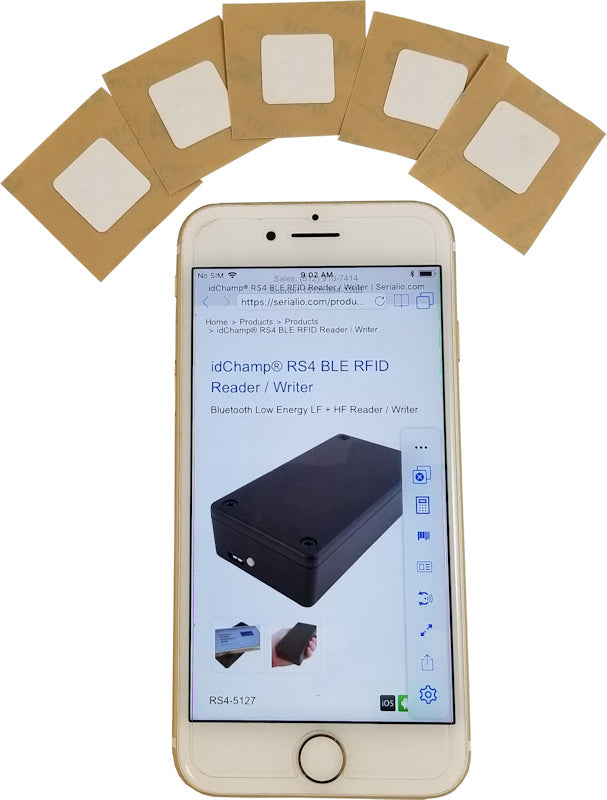

NFC Sticker Tag for iPhone & Android Built-In RFID - 18mm Square

Serialio.com

Regular price $14.75 Sale

Quick Overview

High quality, tiny, RFID-NFC 'thumb' durable PET material sticker tag with a 7-byte serial number.
Provides 180 bytes of user memory supporting URLs up to 144 characters long, with 32-bit password option.

Highlights

Fully complies with NFC Forum Type 2 Tag and ISO/IEC14443 Type A specifications using High Frequency (HF) 13.56MHz.

Stick on existing badges for instant RFID based attendance. Very small size allows use on assets large & small - supporting fast inventory counts.
Don't have software? Consider Cloud-In-Hand® mobile solutions.

Use this tag with apps like iScanBrowser, and Cloud-In-Hand® Mobile Grid, that supports built-in RFID-NFC reader in iPhone 7, 8, X and Android devices.

The idChamp® RS4 BLE RFID Reader / Writer can read and write NDEF data with this tag using iPads and iPhones, as well as even older units that do not have a built-in NFC-RFID reader.

Contact us for logo printing and custom printing on the tags.

Features

  • 18 x 18 x 0.4 mm (Maximum thickness at the point of chip within the inlay. non-chip area thickness is about 0.1mm)
  • PET Polyethylene terephthalate [aka poly(ethylene terephthalate)] provides excellent water and moisture barrier
  • Aluminum antenna
  • peel-and-stick adhesive back
  • Contactless transmission of data and supply energy (no battery needed) Operating distance: up to 1.5 m (depending on antenna geometry)
  • Operating frequency of 13.56 MHz
  • Data transfer of 106 kbit/s
  • Data integrity of 16-bit CRC, parity, bit coding, bit counting
  • Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)
  • 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
  • UID ASCII mirror for automatic serialization of NDEF messages
  • Automatic NFC counter triggered at read command
  • NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
  • ECC based originality signature
  • Fast read command
  • True anticollision
  • 50 pF input capacitance
  • NTAG213: 180 bytes organized in 45 pages with 4 bytes per page, 144 bytes freely available user Read/Write area (45 pages)
    Ask us about NTAG215, NTAG216 If you want more memory 540, 924 bytes organized in 135, 222 pages - 504, 888 bytes freely available user Read/Write area (126, 222 pages)
    4 bytes initialized capability container with one-time programmable access bits
  • Field programmable read-only locking function per page for the first 16 pages
  • Field programmable read-only locking function above the first 16 pages per double page for NTAG213 or per 16 pages for NTAG215 and NTAG216
  • Configurable password protection with optional limit of unsuccessful attempts
  • Anti-tearing support for capability container (CC) and lock bits
  • ECC supported originality check
  • Data retention time of 10 years
  • Write endurance 100,000 cycles
  • Manufacturer programmed 7-byte UID for each device
  • Pre-programmed Capability container with one-time programmable bits
  • Field programmable read-only locking function
  • ECC based originality signature
  • 32-bit password protection to prevent unauthorized memory operations

Note: these tags are designed for application on a non-metallic surface, and do not read when applied directly to metal. Ask us about on-metal RFID form factor, and other chip types for this same form factor, we can provide virtually any RFID HF and UHF tag.
