NTAG213 PCB Tag - 4.5mm Square 1.8mm Thick - NFC Type 2 - ISO/IEC 14443 Compliant

Fully complies with NFC Forum Type 2 Tag and ISO/IEC14443 Type A specifications using High Frequency (HF) 13.56MHz.

Read with the built-in NFC reader on your Galaxy phone or iPhone (since S6 and iPhone 7)

Use this tag with apps like SerialMagic, iScanBrowser, Stratus-io Attendance, and Cloud-In-Hand® Mobile Grid, that supports the built-in RFID-NFC reader in iPhone 7, 8, X, 11, 12, 13, 14, 15, ... and Android devices

Physical

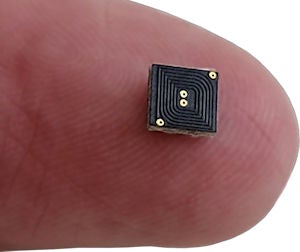

• 4.5 x 4.5 x 1.8 mm (Typical thickness is 1.7mm)
• PCB durability and form factor ideal for pick-and-place usage

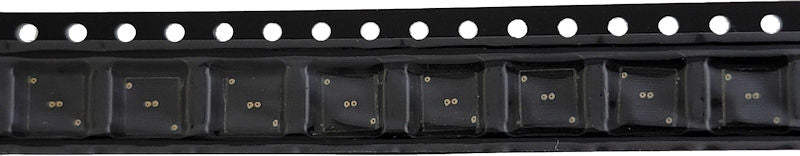

• Available in 13" reel packing for 2000 to 4000 pcs

• 18 x 18 x 0.4 mm (Maximum thickness at the point of chip within the inlay. non-chip area thickness is about 0.1mm)
• PCB durability and form factor ideal for pick-and-place usage
• Durable antenna part of PCB
• Contactless transmission of data and supply energy (no battery needed)
• Operating frequency of 13.56 MHz
• Data transfer of 106 kbit/s
• Data integrity of 16-bit CRC, parity, bit coding, bit counting
• Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)
• 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
• UID ASCII mirror for automatic serialization of NDEF messages
• Automatic NFC counter triggered at read command
• NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
• ECC based originality signature
• Fast read command
• True anti-collision
• 50 pF input capacitance
• NTAG213: 180 bytes organized in 45 pages with 4 bytes per page, 144 bytes freely available user Read/Write area (45 pages)
  Ask us about NTAG215, NTAG216 If you want more memory 540, 924 bytes organized in 135, 222 pages - 504, 888 bytes freely available user Read/Write area (126, 222 pages)
  4 bytes initialized capability container with one-time programmable access bits
• Field programmable read-only locking function per page for the first 16 pages
• Field programmable read-only locking function above the first 16 pages per double page for NTAG213 or per 16 pages for NTAG215 and NTAG216
• Configurable password protection with optional limit of unsuccessful attempts
• Anti-tearing support for capability container (CC) and lock bits
• ECC supported originality check
• Data retention time of 10 years
• Write endurance 100,000 cycles
• Manufacturer programmed 7-byte UID for each device
• Pre-programmed Capability container with one-time programmable bits
• Field programmable read-only locking function
• ECC based originality signature
• 32-bit password protection to prevent unauthorized memory operations
